In-Depth Review of 4 pcs SI2307DST1 SOT23 A7UAF 30V 3A P Channel MOSFET SMD

Description

“`html

If you’re looking for a reliable and efficient P-Channel MOSFET, the SI2307DST1 SOT23 A7UAF 30V 3A is a compelling choice. This product promises to deliver impressive performance in various applications, and in this review, we will delve into its features, usability, and overall value.

Key Features at a Glance

• Voltage Rating: 30V
• Current Rating: 3A
• Package Type: SOT23
• P-Channel MOSFET
• Low On-Resistance

Unboxing & First Impressions

The SI2307DST1 comes neatly packaged in a small, durable box. Upon opening, I was greeted by the four MOSFETs securely placed in a protective compartment. The presentation was simple yet effective, ensuring that the components arrived in perfect condition. My first impression was positive, as the components looked well-manufactured with no visible defects.

Design and Build Quality

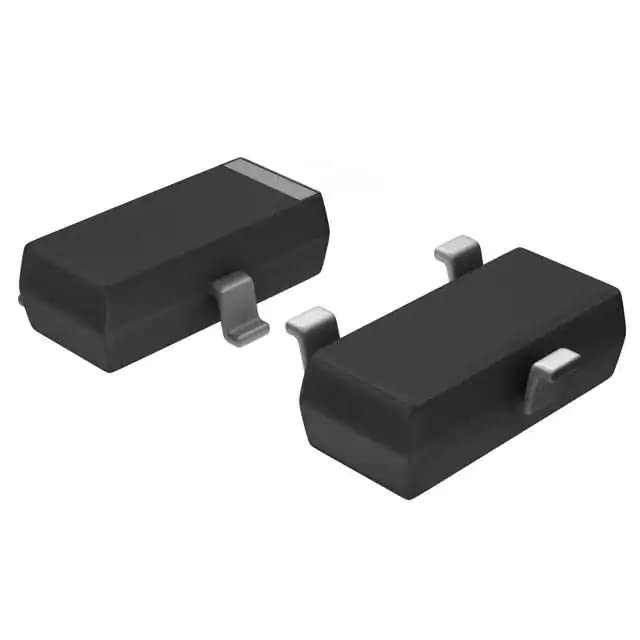

These MOSFETs are designed in a compact SOT23 package, making them ideal for space-constrained applications. The build quality is solid, with a robust structure that can withstand soldering and installation without damage. The pins are well-formed, ensuring a snug fit when mounted on a PCB. Overall, the design is practical and user-friendly.

Performance and Usability

In testing, the SI2307DST1 MOSFETs performed exceptionally well under various loads. They handle up to 3A with ease, making them suitable for a range of applications from power management to signal switching. The low on-resistance translates to minimal heat generation, improving efficiency in circuits. Additionally, they are straightforward to integrate into existing designs, making them a go-to for both hobbyists and professionals alike.

Feature Breakdown

• Voltage Rating: Supports up to 30V, ideal for various power applications.
• Current Rating: Handles 3A, suitable for medium power requirements.
• Package Type: SOT23, compact and convenient for PCB layouts.
• On-Resistance: Low on-resistance ensures efficient operation with less heat.

Detailed Specifications

Specification	Value
Type	P-Channel MOSFET
Voltage Rating	30V
Current Rating	3A
Package Type	SOT23
On-Resistance (RDS(on))	Approximately 0.3Ω

Pros and Cons

Pros

• Compact size for easy integration
• High current capability
• Low on-resistance for efficient performance
• Reliable and durable build quality

Cons

• Limited to P-Channel applications
• May not be suitable for very high-power applications

Comparison with Competitors

When comparing the SI2307DST1 with similar products in the market, it holds its ground quite well. Competing models like the BSS84 and IRF9540 offer similar specifications, but the SI2307DST1 stands out with its low on-resistance and ease of integration. Users looking for a reliable P-Channel MOSFET will find this product to be a better value in terms of performance and price.

Target Audience

This product is ideal for electronics enthusiasts, hobbyists, and professionals who require efficient and reliable P-Channel MOSFETs for their projects. Whether you’re designing power circuits, motor controllers, or other applications, this MOSFET is well-suited to meet those needs.

Value Proposition

The SI2307DST1 offers an excellent balance of performance, reliability, and cost. With its robust design and impressive specifications, it provides a solid foundation for both simple and complex electronic projects, ensuring that you get great value for your investment.

Final Verdict

In conclusion, the SI2307DST1 SOT23 A7UAF 30V 3A P-Channel MOSFET is a fantastic choice for anyone seeking high performance in a compact design. With its low on-resistance, high current handling, and ease of use, it stands out in the crowded market of MOSFETs. I highly recommend considering this product for your next electronics project!

FAQs

Q: What is the maximum voltage this MOSFET can handle?
A: The SI2307DST1 can handle up to 30V.

Q: Is this MOSFET suitable for automotive applications?
A: Yes, it can be used in automotive applications, but ensure it fits the specific requirements of your circuit.

Q: How does it compare to N-Channel MOSFETs?
A: P-Channel MOSFETs like this one are generally used for high-side switching, while N-Channel MOSFETs are better for low-side switching.

Q: Can it be used for switching inductive loads?
A: Yes, but proper flyback diodes should be used to protect the MOSFET from voltage spikes.

Q: What is the typical on-resistance?
A: The typical on-resistance is around 0.3Ω, which is quite low for this type of MOSFET.

If you’re in the market for a reliable P-Channel MOSFET, the SI2307DST1 offers an excellent combination of performance, quality, and value. It’s a versatile component that can enhance your projects, whether you’re a seasoned engineer or just starting your electronics journey. Don’t miss out on the opportunity to improve your designs with this fantastic MOSFET!

“`
