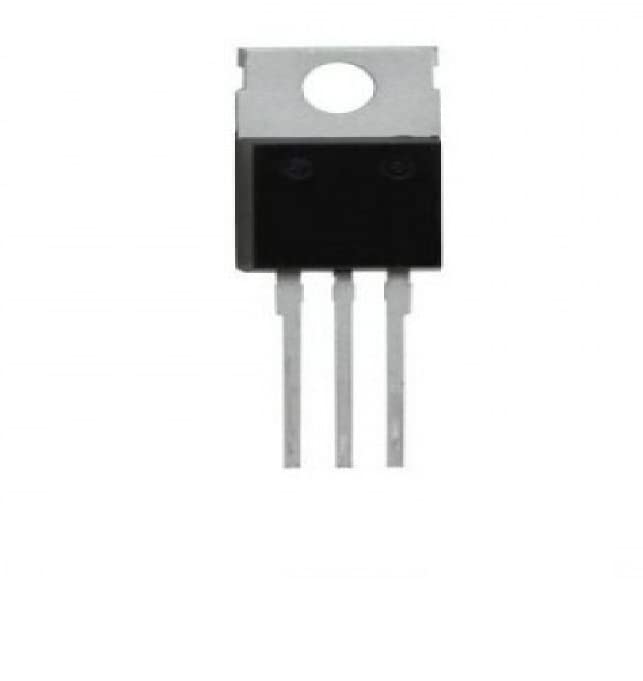

In-Depth Review of 1pcs STP150N10F7 ST MOSFET N Channel 100V 110A TO-220

Description

The 1pcs STP150N10F7 ST MOSFET N channel is a powerful component designed for high-performance applications. With its robust specifications and impressive capabilities, this MOSFET is favored by electronics enthusiasts and professionals alike. Let’s delve deeper into its features, performance, and overall value.

Key Features at a Glance

• Type: N-channel MOSFET
• Voltage Rating: 100V
• Current Rating: 110A
• Package Type: TO-220
• Low Gate Threshold Voltage
• Fast Switching Speed

Unboxing & First Impressions

Upon receiving the STP150N10F7, the packaging was simple yet effective. The MOSFET was securely placed in an anti-static bag, ensuring no damage during transit. Right out of the box, the component looked robust, with the TO-220 package providing a solid feel. The pins were well-formed, making installation easier for users. ?

Design and Build Quality

The design of the STP150N10F7 is typical of high-quality MOSFETs, featuring a TO-220 package that facilitates easy mounting on heatsinks. The build quality is commendable, with a sturdy metal tab for thermal management, ensuring efficient heat dissipation during operation. This thoughtful design enhances the longevity and reliability of the component. ?

Performance and Usability

In terms of performance, the STP150N10F7 excels. It can handle a maximum current of 110A, making it suitable for high-load applications. Users have reported excellent switching speeds, which is crucial for applications like power supplies and motor drivers. The low gate threshold voltage further simplifies its use in various circuits. Overall, its usability is quite high, even for those who may be new to working with MOSFETs.

Feature Breakdown

• High Voltage Rating: Capable of withstanding up to 100V, suitable for various applications.
• High Current Capacity: Handles up to 110A, ideal for power-intensive tasks.
• Fast Switching: Ensures quick response times, essential for efficient circuit designs.
• Thermal Performance: Designed for effective heat dissipation, enhancing reliability.
• Ease of Use: TO-220 package allows for straightforward mounting and integration.

Detailed Specifications

Pros and Cons

Pros

• High current and voltage ratings
• Excellent thermal performance
• Fast switching speeds
• Easy to mount and use
• Reliable performance in varied applications

Cons

• May require additional heat sinking for very high loads
• Not the cheapest option on the market

Comparison with Competitors

When compared to competitors like the IRF3205 or the FQP30N06L, the STP150N10F7 holds its own with superior current ratings. While some competitors may offer lower prices, the STP150N10F7’s performance justifies its cost, especially in applications requiring reliability and efficiency. ⚖️

Target Audience

This MOSFET is ideal for electronic hobbyists, engineers working on power supply designs, and professionals developing motor control circuits. Its robust design and high specifications make it suitable for both amateur projects and commercial applications. ?

Value Proposition

The STP150N10F7 offers exceptional value for those needing a reliable and high-performance MOSFET. Its combination of high current and voltage ratings, fast switching capabilities, and solid build quality make it a worthwhile investment for any serious electronics project. ?

Final Verdict

In conclusion, the 1pcs STP150N10F7 ST MOSFET N channel 100V 110A TO-220 is a stellar choice for those seeking a powerful and dependable component. Whether you are designing simple circuits or complex systems, this MOSFET provides the reliability and performance you need to succeed. If you require efficiency and quality in your projects, the STP150N10F7 is certainly worth considering. ?

FAQs

Q: What applications is the STP150N10F7 best suited for?
A: It is ideal for high-power applications like motor drives, power supplies, and other high-load circuits.

Q: Do I need a heatsink for this MOSFET?
A: While it can operate without one, using a heatsink is recommended for optimal performance under high loads.

Q: What is the maximum temperature this MOSFET can handle?
A: The maximum junction temperature is typically around 150°C, but always consult the datasheet for specifics.

Q: Can I use this MOSFET in a PWM application?
A: Yes, it is suitable for PWM applications due to its fast switching capabilities.

Q: Is this MOSFET compatible with Arduino?
A: Yes, it can be controlled by an Arduino, provided the gate voltage is adequately managed.

In summary, the STP150N10F7 is a fantastic choice for anyone looking to enhance their electronic projects with a reliable and powerful MOSFET. Its impressive specifications and user-friendly design make it a favorite among both professionals and hobbyists. If you prioritize quality and performance, this component is definitely worth a closer look! Happy building! ?
